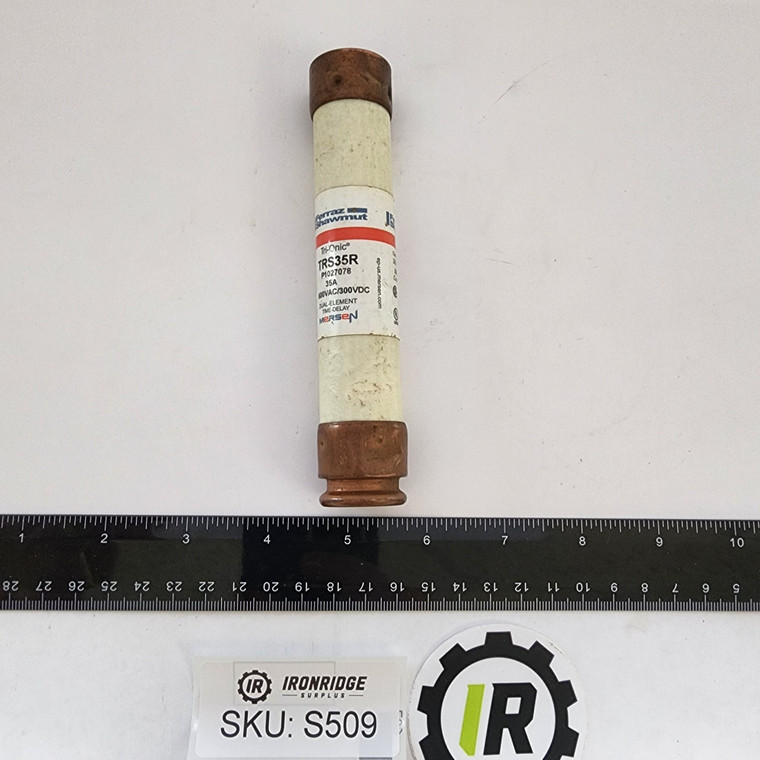

Tri-Onic TRS35R Dual Element Time Delay Fuse, 35 amp, Class RK5

Tri-Onic TRS35R Dual Element Time Delay Fuse, 35 amp, Class RK5

Tri-onic
SKU:
S509
$20.00
$44.50
(You save $24.50 )
(No reviews yet)
Weight:
0.30 LBS
Width:
5.50 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Condition:
New
Current Stock:
1
Adding to cart… The item has been added
Description

Tri-Onic TRS35R is a Class RK5 time-delay fuse with dual-element construction, ferrule mounting, and a current-limiting design. It is rated 35 A for AC/DC use and is built for low-voltage industrial protection applications where time-delay characteristics and compact cylindrical form are required.

Overview

Tri-onic TRS35R Dual Element Time Delay Fuse. Dual-element construction. Time-delay characteristic.

Verified Features

  • Dual-element construction
  • Time-delay characteristic
  • Current-limiting fuse design
  • Ferrule mount type
  • Rejection-style design
  • Non-indicating
  • RoHS compliant

Technical Specifications

SeriesTRS-R
Fuse ClassClass RK5
Ampere Rating35 A
Rated Voltage Ac Ul600 V
Rated Voltage Dc Ul300 V
Frequency50/60 Hz
Ac DcAC/DC
Speed CharacteristicTime Delay
ElementDual
MountingFerrule
Fuse Holder CodeQ
Interrupting Capacity Ac200 kA
Interrupting Capacity Dc20 kA
Connection Terminal MaterialCopper
Connection Terminal TypeFerrule
Body MaterialPolyTube
Body TypeFiberglass
Product Diameter1.06 in
Product Length5.5 in
StandardsUL, CSA
Ul ApprovalsStandard 248-12
Csa ApprovalStandard C22.2 No.248.12
Dc Listed Ul ApprovalStandard 198L
Ean Upc782001749002
Product GroupLow Voltage UL/CSA Fuses
Weight0.319 lb

Applications and Compatibility

  • Motor protection
  • Transformer protection
  • Service entrance equipment protection
  • Feeder circuit protection
  • Branch-circuit protection
Warranty
New Old Stock - Sold As-Is
