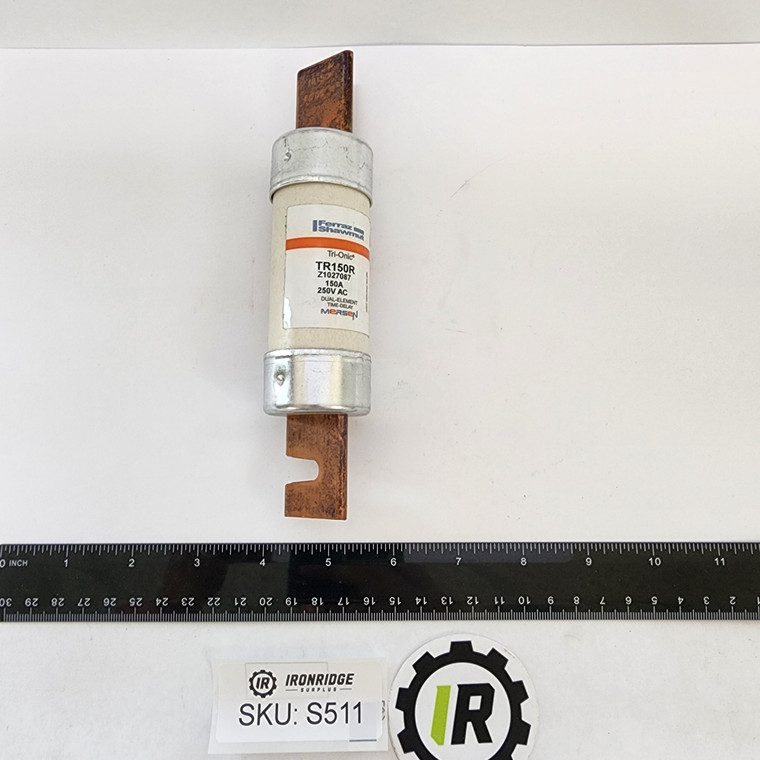

Tri-Onic TR150R 150A 250V AC Dual-Element Time-Delay Fuse

Tri-Onic TR150R 150A 250V AC Dual-Element Time-Delay Fuse

Mersen
SKU:
S511
$33.00
$160.50
(You save $127.50 )
(No reviews yet)
Weight:
0.80 LBS
Width:
7.50 (in)
Height:
1.50 (in)
Depth:
1.50 (in)
Condition:
New
Current Stock:
1
Adding to cart… The item has been added
Description

Tri-onic TR150R is a dual element, time delay fuse built for low-voltage circuit protection. It is specified as a current-limiting, rejection-style fuse with a cylindrical body, blade terminals, and clip mounting. Verified electrical and dimensional data include 150 A, 250 VAC/VDC, 200/20 kA interrupt rating, RK5 class, and 1-9/16 in diameter by 7-1/8 in length body size.

Overview

Tri-onic TR150R Dual Element Time Delay Fuse. Dual element construction. Time delay characteristic.

Verified Features

  • Dual element construction
  • Time delay characteristic
  • Current-limiting design
  • Rejection style
  • Cylindrical body
  • Blade terminal
  • Clip mounting
  • Non-indicating
  • RK5 class
  • Low-voltage fuse
  • RoHS compliant
  • UL 248-12 listed
  • CSA C22.2 No. 248.12 approved
  • DC listed to UL 198L

Technical Specifications

Amperage Rating150 A
Voltage Rating250 VAC/VDC
Interrupt Rating200/20 kA
SeriesTR-R
Body TypeCylindrical
Body MaterialPolyester
Body Size1-9/16 in Dia x 7-1/8 in L
Overall Length7-1/8 in
Blade Height1.1250 in
Blade Or Ferrule Length1.3750 in
Blade Width.1875 in
Mounting TypeClip
Terminal TypeBlade
Fuse ClassRK5
Fuse TypeTime Delay
Indicating StatusNon-Indicating
ElementDual
Rejection StatusRejection
Country Of OriginMX
Ul ApprovalsStandard 248-12
Csa ApprovalStandard C22.2 No.248.12
Dc Listed Ul ApprovalStandard 198L
Upc00782001748067
Unspsc39121604
Diameter1.5625 in

Applications and Compatibility

  • Motor circuits
  • Mains
  • Feeders
  • Branch circuits
  • Transformers
  • Service entrance equipment
  • General purpose equipment
Warranty
New Old Stock - Sold As-Is
