Power Products NP69SW-4-4 1/4 in 90° Push-On Male Swivel Brass Elbow

Power Products NP69SW-4-4 1/4 in 90° Push-On Male Swivel Brass Elbow

Power Products
SKU:
S639
$6.50
$13.50
(You save $7.00 )
(No reviews yet)
Weight:
0.10 LBS
Width:
1.50 (in)
Height:
1.50 (in)
Depth:
0.75 (in)
Condition:
New
Current Stock:
17
Adding to cart… The item has been added
Description

Overview

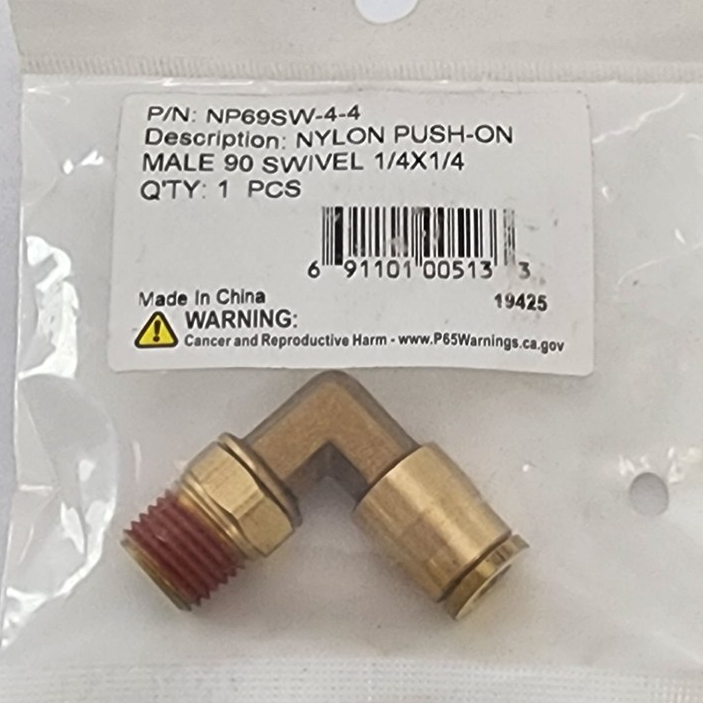

Power Products NP69SW-4-4 is a 1/4 in. x 1/4 in. 90° brass push-on male swivel elbow. It is a pneumatic fitting designed for SAE J844 nylon tubing and is DOT 49 CFR 571.106 and SAE J1131 compliant.

Verified Features

  • 90° elbow geometry
  • Male swivel push-on fitting
  • Brass construction
  • NP69 series designation
  • 1/4 in. x 1/4 in. size designation
  • Push-on air brake fitting
  • Built-in swivel for positioning
  • Designed for SAE J844 nylon tubing
  • DOT 49 CFR 571.106 compliant
  • SAE J1131 hot pull compliant
  • Maximum operating pressure up to 150 psi
  • Operating temperature range -40°F to +212°F

Technical Specifications

Series / FamilyNP69
Angle90° elbow
Connection TypePush-on / push-lock to male swivel elbow
Body MaterialBrass
Size Notation1/4 in. x 1/4 in.
Size Left1/4 in.
Size Right1/4 in.
Model Code StructureNP69SW-4-4
Raw Size Designation1/4" x 1/4"
Tube Size1/4
Compatible Tube Materials['SAE J844 nylon tubing']
Pressure Rating0 to 150 psi
Temperature Rating-40°F to +212°F
Compliance['DOT 49 CFR 571.106', 'SAE J1131']

Applications and Compatibility

  • Air brake tubing connections in compressed-air vehicle systems

Cross References

  • ANDERSON 02569-0404 (Equivalent)
  • AUTOMANN 177.13B694B (Equivalent)
  • BWP M4733 (Equivalent)
  • CMI 969-4-4PXDOTS (Equivalent)
  • DYNACRAFT D2030-8926 (Equivalent)
  • FASTENAL 441052-131280 (Equivalent)
  • GATES GB04140-0404 (Equivalent)
  • IMPERIAL 91231 (Equivalent)
  • KIMBALL-MIDWEST 1869X4X4 (Equivalent)
  • O'BRIEN BRASS 2469-4-4 (Equivalent)
  • TRAMEC SLOAN S269PMT-4-4 (Equivalent)
  • TECTRAN PL1369-4B (Equivalent)
  • 16244 (Equivalent)
  • 1869x4x4S (Equivalent)
  • 269PPSDOT-4B (Equivalent)
  • 269PPSDOT-4B-Y (Equivalent)
  • 95411410M (Equivalent)
  • 969-1-44 (Equivalent)
  • AQ69-DOTS-4X4 (Equivalent)
  • DQ69DOTS-4X4 (Equivalent)
  • DQ69S-44 (Equivalent)
  • PC1469SW-4B (Equivalent)
  • PC1469SW4B (Equivalent)
  • S269PMT-4-4 (Equivalent)
Warranty
New Old Stock - Sold As-Is
