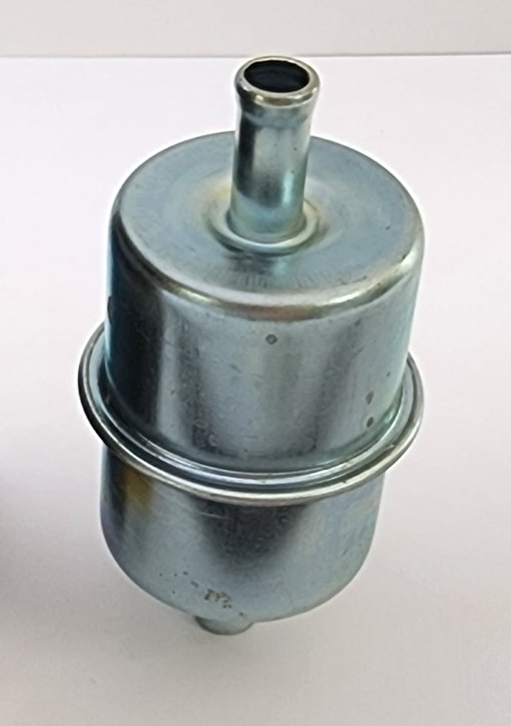

NAPA 3033 Fuel Filter, 3/8 inch inlet/outlet

NAPA 3033 Fuel Filter, 3/8 inch inlet/outlet

NAPA
SKU:
S518
$6.00
$45.93
(You save $39.93 )
(No reviews yet)
Weight:
0.20 LBS
Width:
2.25 (in)
Height:
2.25 (in)
Depth:
4.25 (in)
Condition:
New
Current Stock:
1
Adding to cart… The item has been added
Description

NAPA 3033 is a fuel filter in the NAPA Gold line. Published technical listings show this part as an inline fuel filter configuration with a double open end design, metal outer jacket, and clamped hose connections. Documented specifications include a 15 nominal micron rating, 75 PSID collapse pressure rating, 225 F maximum temperature, and overall dimensions of 3.85 in length with 1.91 in outside diameter at both ends. It is listed with cellulose/paper media and plated steel end caps and center tube.

Overview

Napa 3033 Fuel Filter. Inline fuel filter configuration. Double open end design.

Verified Features

  • Inline fuel filter configuration
  • Double open end design
  • Metal outer jacket
  • Cellulose/paper filter media
  • Plated steel end caps
  • Plated steel center tube
  • 15 nominal micron rating
  • 75 PSID collapse pressure rating
  • 225 F maximum temperature
  • Outside flow direction

Technical Specifications

FamilyNAPA Gold fuel filter
Filter StyleFuel (Complete In-Line) Filter
ConfigurationDouble open end
Connection3/8 in inline with hoses and clamps
MediaCellulose / paper
End Cap MaterialPlated steel
Center Tube MaterialPlated steel
Outer JacketMetal
Length In3.85
Length Mm97.79
Outer Diameter Top In1.91
Outer Diameter Top Mm48.51
Outer Diameter Bottom In1.91
Outer Diameter Bottom Mm48.51
Micron Rating Nominal15
Collapse Pressure Psid75
Maximum Temperature F225
Flow DirectionOutside to in

Cross References

  • WIX 33033 (Equivalent)
  • Donaldson P550090 (Equivalent)
  • Fleetguard FF5006 (Equivalent)
  • Baldwin BF836 (Equivalent)
  • Baldwin BF836-K3 (Equivalent)
Warranty
New Old Stock - Sold As-Is
