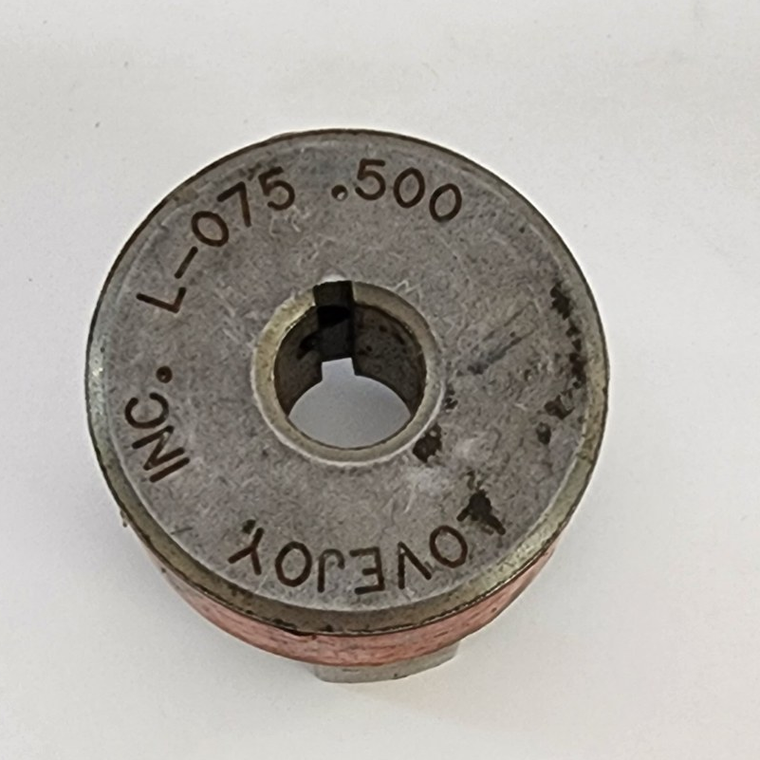

Lovejoy 68514410685 L075 jaw coupling hub, 1/2 in bore

Lovejoy 68514410685 L075 jaw coupling hub, 1/2 in bore

Lovejoy
SKU:
S519
$9.50
$15.00
(You save $5.50 )
(No reviews yet)
Weight:
0.50 LBS
Width:
1.75 (in)
Height:
1.75 (in)
Depth:
1.25 (in)
Condition:
New
Current Stock:
1
Adding to cart… The item has been added
Description

Compact jaw coupling hub with a 1/2 in finished bore and keyway, designed for Lovejoy L075 series applications. Built with sintered iron and a straight jaw profile, this hub includes set-screw retention and standard L-type geometry for industrial power transmission use.

Overview

Lovejoy 68514410685 L-075 Jaw Style Couling 1/2 in Bore. Jaw coupling hub. L075 coupling size.

Verified Features

  • Jaw coupling hub
  • L075 coupling size
  • Straight jaw design
  • Finished bore with keyway
  • Set-screw retention
  • Sintered iron construction
  • Metallic finish

Technical Specifications

SeriesL
Coupling SizeL075
Jaw TypeStraight
Bore Diameter0.5000 in
Bore TypeFinished w/ Keyway & SS
Keyway Size1/8 x 1/16 in
Hub MaterialIron
MaterialSintered Iron
Hub End Diameter1-3/4 in
Length Through Bore0.8200 in
Coupling Overall Length2.1300 in
Hub Length1.32 in
Torque Capacity227 in
Nominal Torque90.00 in·lb
Max Speed11000 rpm
Dimension G0.5 in
Dimension Sl0.31 in
Dimension T1/4-20
Number Of Jaws3
Elastomeric MemberSOX (NBR) Rubber
Rated Hp At 100 Rpm0.14 hp
Rated Hp At 1200 Rpm1.68 hp
Rated Hp At 1800 Rpm2.57 hp
Rated Hp At 3600 Rpm5.04 hp
Min Bore0.250 in
Max Bore0.875 in
Cubic Inches4.04250 in³
ColorMetallic
Upc685144106858
Outside Diameter1.7500 in
Weight0.45 lb
Warranty
New Old Stock - Sold As-Is
