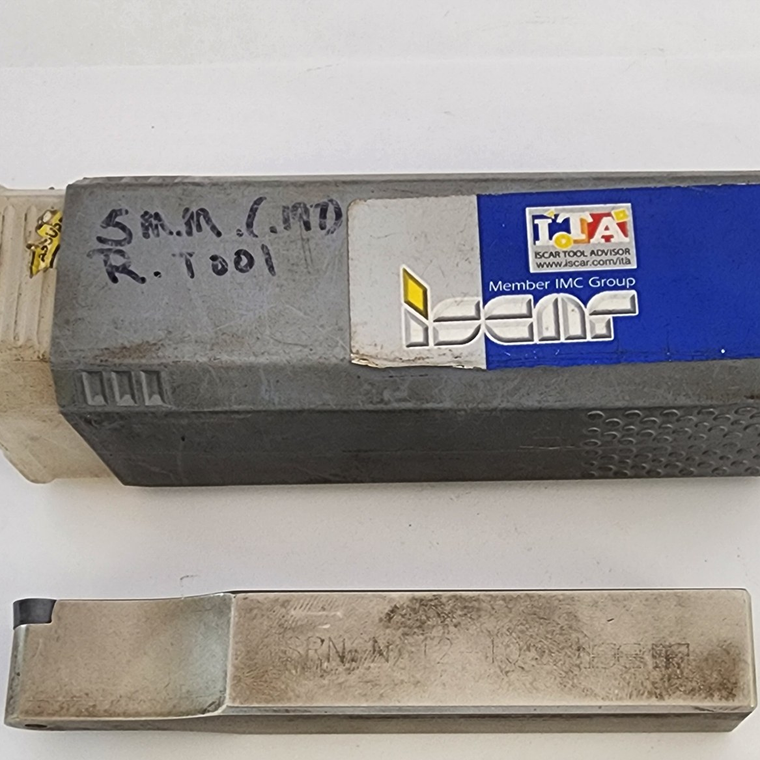

ISCAR SRNCN 12-10 carbide indexable turning insert

ISCAR SRNCN 12-10 carbide indexable turning insert

ISCAR
SKU:
S376
$85.00
$170.00
(You save $85.00 )
(No reviews yet)
Weight:
0.80 LBS
Width:
5.00 (in)
Height:
1.50 (in)
Depth:
1.50 (in)
Condition:
Used
Current Stock:
1
Adding to cart… The item has been added
Description

ISCAR SRNCN 12-10 carbide indexable turning insert

ISCAR SRNCN 12-10 carbide indexable turning insert is a researched replacement or service part with documented specifications including Family Description: Screw lock neutral holders for 7° clearance angle round inserts, Tool Type: square shank turning tools, Harmonized Code: 8466100130.

Key Features

  • Brand: ISCAR
  • Manufacturer Part Number: SRNCN 12-10
  • Product Type: carbide indexable turning insert
  • Family Description: Screw lock neutral holders for 7° clearance angle round inserts
  • Tool Type: square shank turning tools
  • Harmonized Code: 8466100130
  • Rake Angle Axial: 0 degrees
  • Rake Angle Radial: 0 degrees
  • Functional Length: 4-1/2 in

Technical Specifications

BrandISCAR
ManufacturerISCAR
Manufacturer Part NumberSRNCN 12-10
Product Typecarbide indexable turning insert
MpnSRNCN 12-10
Catalog FamilySRNCN
Tool Typesquare shank turning tools
Cutting Directionneutral
Measurement Typeinch
Shank Height3/4 in
Shank Width3/4 in
Functional Length4-1/2 in
Head Length0.79 in
Functional Width0.37 in
Inscribed Circle Diameter0.394 in
Body Materialsteel
Master Insert IdentificationRC.. 10
Rake Angle Axial0 degrees
Rake Angle Radial0 degrees
Family DescriptionScrew lock neutral holders for 7° clearance angle round inserts
Country Of OriginIsrael
Weight Per Item0.6900
Harmonized Code8466100130

Additional Information

Verify part number, specifications, and application compatibility before ordering or installation.

Warranty
As-Is / No Warranty
