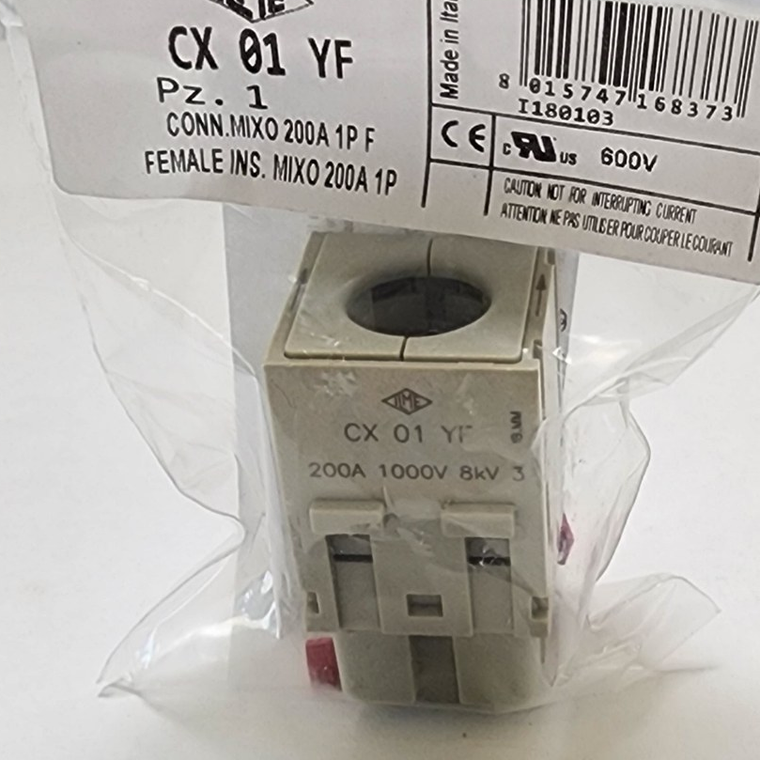

ILME CX 01 YF Female Modular Insert, Mixo Series

ILME CX 01 YF Female Modular Insert, Mixo Series

ILME
SKU:
S610
$5.50
$8.16
(You save $2.66 )
(No reviews yet)
Weight:
0.10 LBS
Width:
2.13 (in)
Height:
1.50 (in)
Depth:
1.38 (in)
Condition:
New
Current Stock:
24
Adding to cart… The item has been added
Description

ILME CX 01 YF is a female modular insert from the Mixo series with crimp connection, 1 pole, and 2-module size. It is rated 200 A, 1000 V, and 8 kV, with IP20 protection without enclosure and up to IP69 with enclosure.

Overview

ILME CX 01 YF Connector. Female modular insert. Mixo series.

Verified Features

  • Female modular insert
  • Mixo series
  • Crimp connection
  • 1 pole
  • 2-module size
  • 200 A current rating
  • 1000 V voltage rating
  • 8 kV rated impulse withstand voltage
  • Pollution degree 3
  • UL/CSA rated voltage 600 V
  • IP20 without enclosure
  • IP65/IP66/IP68/IP69 with enclosure
  • Operating temperature range -40 °C to +125 °C
  • UL 94 V-0 flammability rating
  • Polycarbonate body material
  • RAL 7032 grey color
  • Insulation resistance ≥ 10 GΩ
  • Contact resistance ≤ 0.2 mΩ
  • Weight 32.00 g
  • Reference standard EN 61984:2009-06
  • Certifications CSA, DNV, BV
  • RoHS compliant
  • EAN13 8015747168052
  • Packaging quantity 5 pcs

Technical Specifications

SeriesMixo
Connector TypeModular insert
Connection TypeCrimp connection
GenderFemale
Number Of Poles1
Size2 modules
Current Rating200 A
Voltage Rating1000 V
Rated Impulse Withstand Voltage8 kV
Pollution Degree3
Ul Csa Rated Voltage600 V
Ip Rating Without EnclosureIP20
Ip Rating With EnclosureIP65/IP66/IP68/IP69
Insulation Resistance≥ 10 GΩ
Contact Resistance≤ 0.2 mΩ
Operating Temperature Range-40 °C to +125 °C
Flammability RatingUL 94 V-0
Main MaterialPolycarbonate
ColorRAL 7032 grey
Reference StandardEN 61984:2009-06
Certifications['CSA', 'DNV', 'BV']
Rohs ConformityCompliant
Reach Svhc SubstancesNo
Ean138015747168052
Eclass 8 127440205
Etim 7 0EC000438
Packaging Quantity1 pcs
Packaging Ean8015747168366
Sub Packaging DescriptionPlastic bag
Sub Packaging Quantity1 pcs
Sub Packaging Ean8015747168373
Weight32.00 g
Warranty
New Old Stock - Sold As-Is
