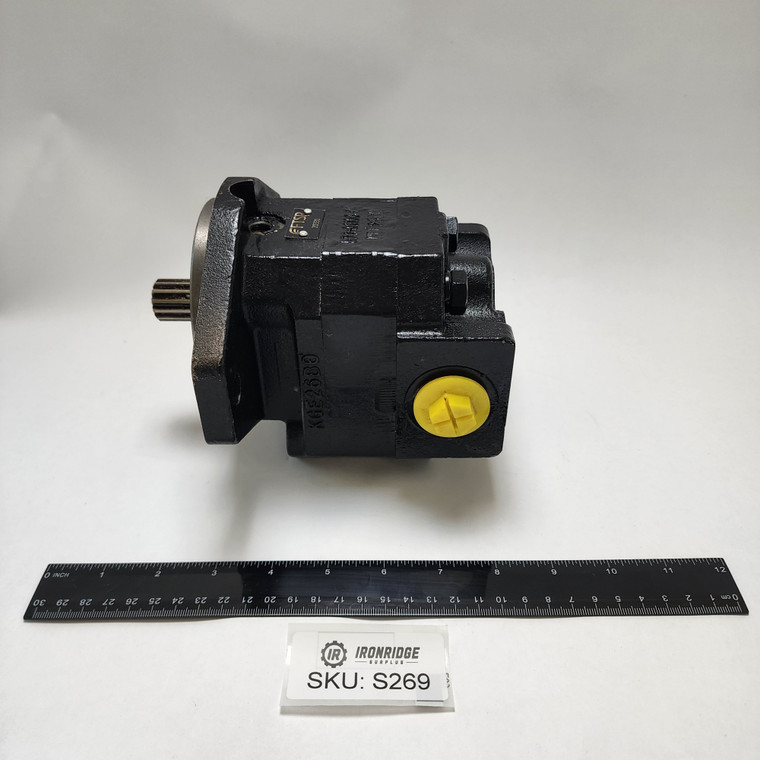

FTSR Bi-rotational Hydraulic Gear Motor, 3000 RPM, 3000 PSI, 20 cc Displacement, SAE-B 7/8"-13T Shaft

FTSR Bi-rotational Hydraulic Gear Motor, 3000 RPM, 3000 PSI, 20 cc Displacement, SAE-B 7/8"-13T Shaft

FTSR
SKU:
S269
$170.00
$350.00
(You save $180.00 )
(No reviews yet)
Weight:
22.20 LBS
Width:
9.00 (in)
Height:
8.00 (in)
Depth:
11.00 (in)
Condition:
New
Current Stock:
5
Adding to cart… The item has been added
Description

The FTSR Bi-Rotational Hydraulic Gear Motor is engineered for dependable operation in demanding mobile and industrial hydraulic applications. Its bi-directional design allows the motor to operate in either clockwise or counterclockwise rotation, providing flexibility for conveyors, augers, agricultural equipment, material-handling systems, and other hydraulic drive applications.

This motor features a 20 cc displacement and is rated for operating speeds up to 3,000 RPM and pressures up to 3,000 PSI. The SAE-B mounting flange and 7/8-inch, 13-tooth splined shaft provide compatibility with a wide range of hydraulic equipment and drive components.

The motor is equipped with #12 ORB hydraulic ports for secure, high-flow connections. A case-drain connection is mandatory and must be properly connected during installation to prevent internal pressure buildup and premature seal failure. Bonded seals are required on all applicable fittings to ensure proper sealing and reliable operation.

**Specifications**

  • Brand: FTSR
  • Motor Type: Bi-Rotational Hydraulic Gear Motor
  • Displacement: 20 cc/revolution
  • Maximum Speed: 3,000 RPM
  • Maximum Pressure: 3,000 PSI
  • Mounting Flange: SAE-B
  • Shaft: 7/8-inch, 13-tooth spline
  • Main Ports: #12 ORB
  • Rotation: Clockwise or counterclockwise
  • Case Drain: Mandatory
  • Fitting Seal Requirement: Bonded seals required

**Important Installation Notice:** The case-drain port must be connected directly to the hydraulic reservoir through a low-restriction return line. Do not plug or cap the case-drain port. Use bonded seals on all fittings to prevent leakage and ensure proper system performance.

Warranty
New Old Stock - Sold As-Is
