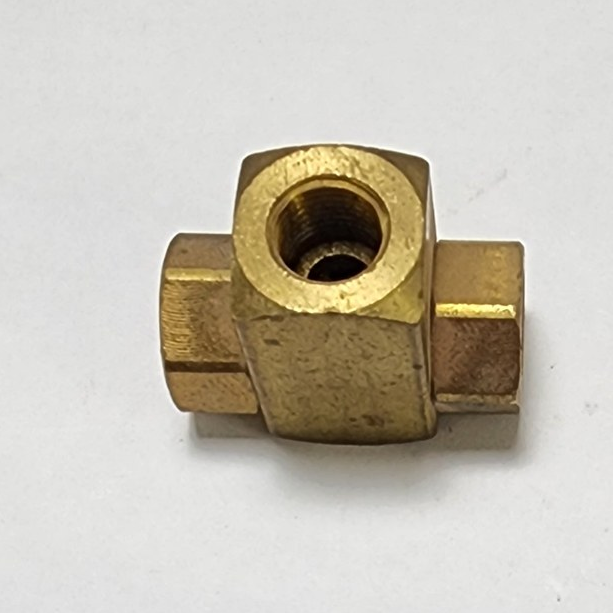

Clippard MJSV-1 Poppet Shuttle Valve 1/8 NPT Female Brass

Clippard MJSV-1 Poppet Shuttle Valve 1/8 NPT Female Brass

Clippard
SKU:
S678
$13.00
$18.50
(You save $5.50 )
(No reviews yet)
Weight:
0.10 LBS
Width:
1.00 (in)
Height:
1.25 (in)
Depth:
0.75 (in)
Condition:
New
Current Stock:
9
Adding to cart… The item has been added
Description

Overview

Clippard MJSV-1 poppet type shuttle valve with 1/8 in NPT female porting and direct or in-line mounting. It has two inlets and one common outlet, with a brass body and stainless steel shuttle.

Verified Features

  • Poppet type shuttle valve
  • 1/8 in NPT porting
  • Two inlet sources to one common outlet
  • Clippard MJSV series
  • Direct or in-line mount
  • Brass body
  • Stainless steel shuttle material
  • Nitrile seals
  • Shuttle valve flow path from A to C or B to C
  • Not for use as a pressure selector

Technical Specifications

Series / FamilyMJSV
Valve TypePoppet Type Shuttle Valve
Valve ConstructionPoppet type
Thread Size1/8 in NPT
Port Thread1/8 in NPT
Porting1/8 in NPT
Inlet Count2
Outlet Count1
Flow Paths['A to C', 'B to C']
Connection Designation1/8 in NPT Female
Maximum Operating Pressure Air300 psig
Maximum Operating Pressure Hydraulics1000 psig
Operating Pressure300 psig max
Flow Rate 50 Psig400 l/min
Flow Rate 100 Psig740 l/min
MediumAir, Water or Oil
Mounting StyleDirect or In-Line
Material Of ConstructionBrass body; Stainless steel shuttle
Body MaterialNitrile
Pressure To ShiftApprox. 1 psig
Warranty
New Old Stock - Sold As-Is
