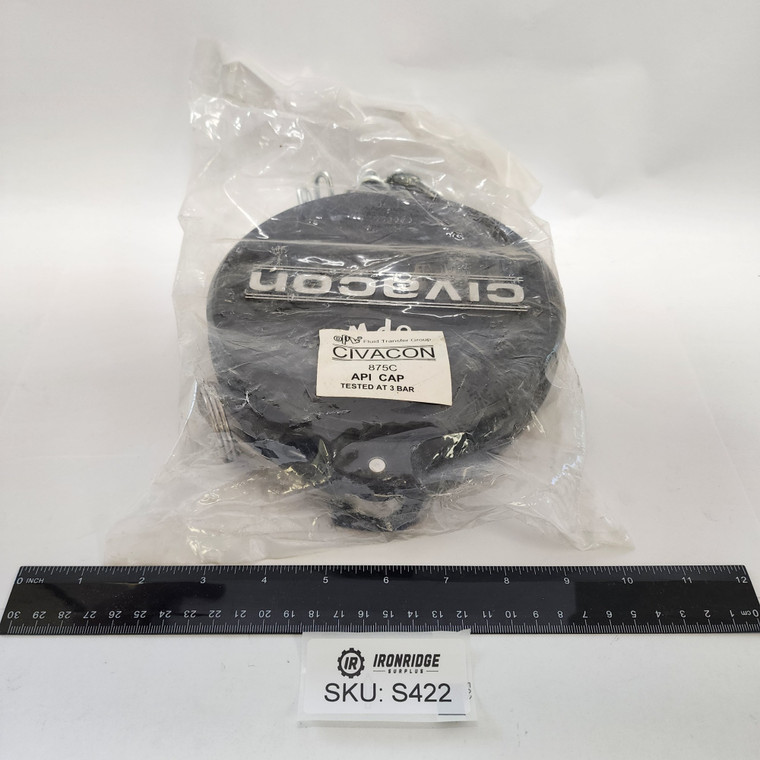

Civacon 875C 4" API Dust Cap

Civacon 875C 4" API Dust Cap

Civacon
SKU:
S422
$95.00
$100.00
(You save $5.00 )
(No reviews yet)
Weight:
2.60 LBS
Width:
9.00 (in)
Height:
7.00 (in)
Depth:
2.00 (in)
Condition:
New
Current Stock:
4
Adding to cart… The item has been added
Description

The Civacon 875C is a 4-inch API dust cap used on bottom-loading tank trailer applications to cover and seal the API connection when not in use. It is designed for one-handed installation and removal, with a radial cam and lug design for easy operation. The cap uses a secondary pressure-rated seal and includes a 19-inch plated steel chain for secure attachment. The 875C features lightweight die-cast aluminum construction, a durable black finish, and a pre-cast hole for a security seal. It is available with a Buna-N seal; a Viton-seal version is identified as the 875CV.

Key Features

  • API dust cap for sealing and protecting the API head when not in use
  • Temperature Range: -40F to 158F (-40C to 70C)
  • Installation Location: Bottom-loading connection
  • Pressure Range: Pressure rated; 14.5 PSI
  • Material: Die-cast aluminum
  • Connector: API connection

Technical Specifications

BrandCivacon
ManufacturerCivacon
Manufacturer Part Number875C
Product TypeAPI cap
FunctionAPI dust cap for sealing and protecting the API head when not in use
Installation LocationBottom-loading connection
MaterialDie-cast aluminum
ConnectorAPI connection
Pressure RangePressure rated; 14.5 PSI
Temperature Range-40F to 158F (-40C to 70C)

Cross References

  • 875CV (Equivalent)
  • 10918 (Equivalent)
  • 11474 (Equivalent)

Applications and Compatibility

  • Application: Bottom-loading tank trailer service
  • Compatible Equipment: API head, bottom-loading adapters, gravity couplers
Warranty
New Old Stock - Sold As-Is
