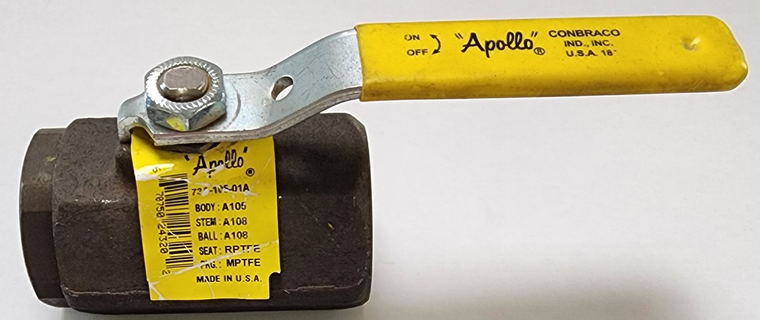

Apollo 73A-105-01A Ball Valve, A105 Body, 1 in

Apollo 73A-105-01A Ball Valve, A105 Body, 1 in

Apollo
SKU:
S572
$70.50
$80.00
(You save $9.50 )
(No reviews yet)
Weight:
2.10 LBS
Width:
6.75 (in)
Height:
2.13 (in)
Depth:
3.13 (in)
Condition:
New
Current Stock:
1
Adding to cart… The item has been added
Description

Manual two-way ball valve with a standard port, threaded FNPT ends, and a 1 in nominal size. Built in the Apollo 73A-100 Series with a forged carbon steel body and lever handle operation.

Overview

Apollo 73A-105-01A Ball Valve. 2-piece ball valve construction. Standard port.

Verified Features

  • 2-piece ball valve construction
  • Standard port
  • FNPT threaded end connections
  • Lever handle operation
  • Forged carbon steel body
  • Chrome plated carbon steel ball
  • MPTFE softgoods
  • Adjustable packing gland
  • Blow-out proof stem design
  • Zinc phosphate corrosion protection
  • Vacuum service to 29 in Hg
  • 150 psig saturated steam/body seal
  • Made in the United States

Technical Specifications

Series73A Series Ball Valves
Valve Type2-piece, 2-way manual ball valve
Port TypeStandard port
Nominal Size1 in
End Connection TypeFNPT
End Connection StandardNPT
Body MaterialForged carbon steel
Ball MaterialChrome plated carbon steel
Trim MaterialCarbon steel / RPTFE
Softgoods MaterialMPTFE
Actuator TypeLever handle
Pressure Rating2000 psi CWP
Orifice Size0.87 in
Inlet To Outlet Length3.4 in
Top To Inlet Center2.18 in
Country Of OriginUnited States
Standards And Approvals['AAR File No. E999032', 'ASTM A105 body', 'ASTM A108', 'MSS SP-110', 'PROP65 warning']
Features['Blow-out proof stem design', 'Zinc phosphate corrosion protection', 'Vacuum service to 29 in Hg', 'Zinc plated steel lever nut', 'ASTM A108-CS gland nut', 'ASTM A216-WCB retainer', 'Zinc plated steel lever with vinyl grip', '150 psig saturated steam/body seal']
Domestic ImportDomestic
PackagingCarton (1 piece)
ColorBlack
ShapeStraight
Weight2.2 lb

Applications and Compatibility

  • Heating
  • Cooling
  • Steam
  • Compressed air
  • Vacuum
  • Gas
  • Water
Warranty
New Old Stock - Sold As-Is
